36' Gillnet F/V

Category:
Fishing Vessel
Price:
$80,000
Location:
Southeast
Size:
36' - 50'
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

36 foot Albion

- Gillnet Fishing Vessel

- Built 1970

- Beam 10.5'

- Draft 4'

- Fiberglass reinforced plastic (FRP)

    •    Hull:   Molded FRP
    •    Deck:    Ply/FRP
    •    Bulkheads: Ply/FRP
    •    Guards:    1” x 4” UHMW
    •    Stringers:  Longitudinal wood/FRP
    •    Bulwarks:  FRP with aluminum railing
    •    House:     Wood frame/ply/FRP
    •    Paint/Cover Coat:  Gel coat/marine coatings
    •    MAIN ENGINE(S)
    •    Make and Model:  VOLVO PENTA MD-70A   Year: 1970    Serial# 690521-8
    •     Hours: 16,000 reported  HP: 140
    •    Cylinders    : 6    RPM:  2200     Aspiration: Natural    Starting: 12 volt
    •    Cooling: Keel cooled   Exhaust: Dry   Ventilation:  Atmosphere
    •    Reduction gear:    CAPITOL 2HEA-10200  Serial# 690521-8  Ratio: 2.437:1
    •    Controls:     MATHERS MicroCommander, 3 station
    •    Attached Units:  GRESEN 12 gpm hydraulic pump on PITTS clutch; 1.24” JABSCO  on PITTS clutch; LEECE NEVILLE 12 volt alternator
    •    THRU HULLS:      Bronze below waterline, bronze gate valves;    Bronze and plastic above waterline
    •    BATTERIES: (2) 12 volt 8D    Battery switches: Rotary

    •    HOLDS about 8-10,000 lbs of fish
    •    Type:    (9)  Brailer bag for slush ice
    •    Insulation: Spray foam   Lining: FRP  Plumbing:  Shared sump
    •    Fuel Tank:    300 gallons

    •    Aux. fuel:      Portable propane tank
    •    Fresh water:      20 gallons
    •    Tank mounts:  Adequate
    •    PROPELLER/SHAFTING
    •    Propeller(s):    29 RH 19 bronze 4 blade  (also spare)
    •    Tail shaft:     1 ¾” SS
    •    Stern Bearing:  CUTLESS   Couplings:  Marine grade
    •    Rudder: 21” x 28”x ¼” steel; 1.25” SS rudder stock
  STEERING
    •    Type: WAGNER hydraulic, 3 stations; MAROL MRB-75 quadrant       Stations: 3
    •    PUMPS
    •    Bilge:   12 volt; engine room,; 1.25” JABSCO belt driven for engine room and fish hold, also washdown
    •    Washdown: 1.25” JABSCO
    •    Fresh Water:   PARMAX 12 volt pressure
    •    SANITATION
    •    Type:   5 gallon portable

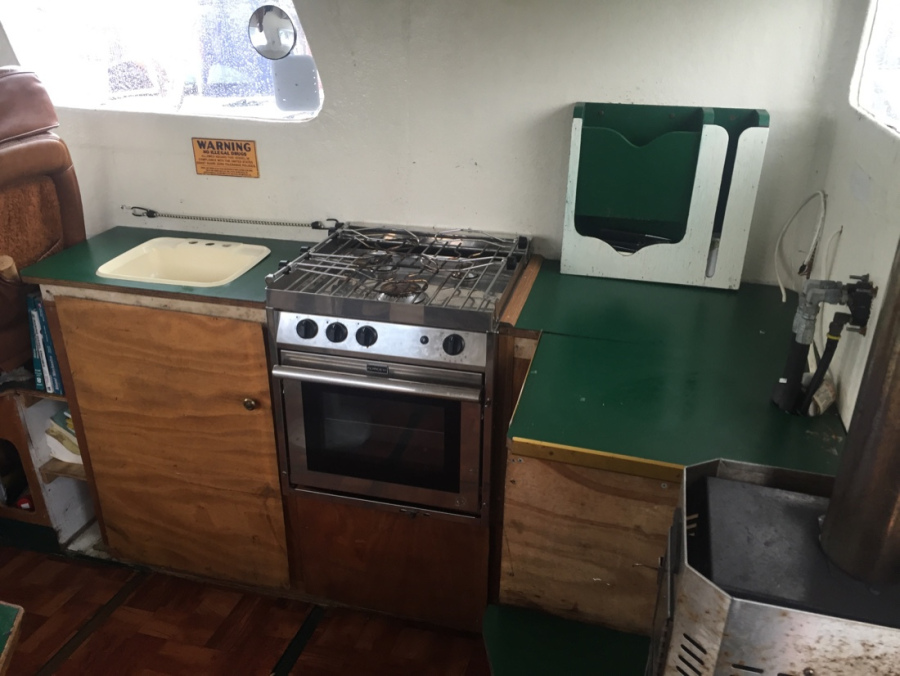

    •    GALLEY EQUIPMENT
    •    Refrigerator: NORCOLD TEK II cooler

           - Stove: DICKINSON oil heater;

           - WEDGEWOOD Vision propane range

ELECTRONICS
    •    GPS:       LOWRANCE Global Map 7200e; laPTOP
    •    Radar:       RAYTHEON R21  24 mile
    •    VHF:        ICOM IC- M-302
    •    CB:             MIDLAND #77092
    •    Compass:      RITCHIE 3” magnetic
    •    Sounder:    FURUNO FCV-667; EAGLE Cuda 300
    •    Autopilot:  ROBERTSON AP-11
    •    Stereo: KENWOOD CD / receiver;  ProCom speakers
 ALARMS
    •    Engine:    Oil: Yes       Temp:  Yes

    •    High Water      Shaft alley: Yes, with audible and visual indicators in         cabin

    •    DC circuits: 12 volt; 8 circuit marine breaker panel at helm; 4 circuit fused

      switch panel
    •    Battery charger:    12 volt alternator
    •    HYDRAULICS
GRESEN hydraulic pump servicing anchor winch and deck gear

*Recent Survey Available

Located in Juneau
