1986  WEGLEY  32' with RSW Bristol Bay Permit Available for Package deal



32ft / BEAM 13.0ft / DEPTH 5.5ft / DRAFT 3.3ft /
SERVICE     BRISTOL BAY / Commercial Fishing / Gillnet

          REPLACEMENT COST $600,000-Estimate
         INS Sea Mountain /

ENGINE         1995 Marine Diesel / Lugger 6125 T/ 460HP / 7481-Hrs Estimate
            1995 Marine Reduction Gear / ZF IRM 310 AL Type
(2) Trolling Valve (Disconnected) / 1.5:1 Ratio
Engine Cooling::    (2) Walters Type / 6 & 12 Tube Copper Alloy / Thru Bolted to Hull
Exhaust::              5-6in Dry Stack Type / S/S Tubing & Flex Joint / Custom Heat Blankets
            Custom Alum Exhaust Shroud / Fab/Welded Boxed Construction
Fuel Filters::            Racor 1000 Type / Turbine Series / Water & Fuel Filtration / Shut-Off Valves
Panel::          (2) Marine Engine Instruments  / Fuel Gauges / Cabin & F/B Helm Stations
Propeller::          Unknown - (26x20) RH Brass/Bronze 4 Blade || Spare / (25x21) RH Brass/Bronze 4 Blade
Shaft::          2.00in S/S / Standard Taper & Coupler / Marine Cutlass Stern Bearing
Ventilation::        Custom / Fab/FRP Const & Louvered Alum Panel / Cabin Bulkhead & Exhaust Shroud

===============================================================

BATTERIES        (2) 8D Single Bank / Standard Lead Acid Type / Structural Poly Case / 12VDC
            Perko/Guest Type / 4 Position Battery Selector Switch / Vapor Tight Type                        Battery Boxes / Custom Fab/Wood & FRP Const

CABIN

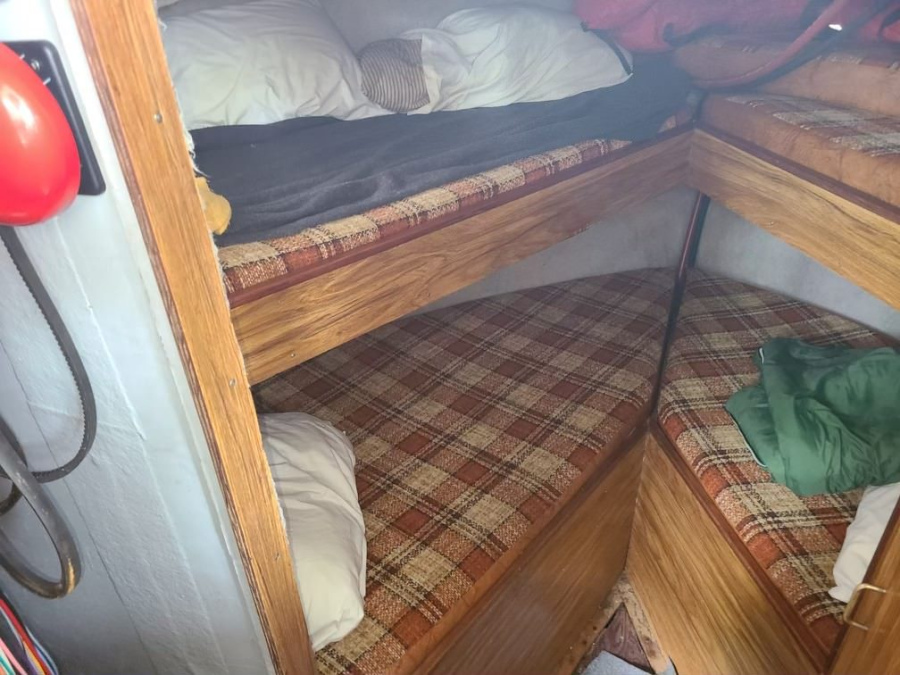

Bunks::           (4) Foscle V Berths / Covered Foam Type || Day Bunk / Main Cabin
Bathroom::      Head Removed / Shower Disconnected /                                                                                                    Hot-Cold Pressurized Water / Custom Wood Door

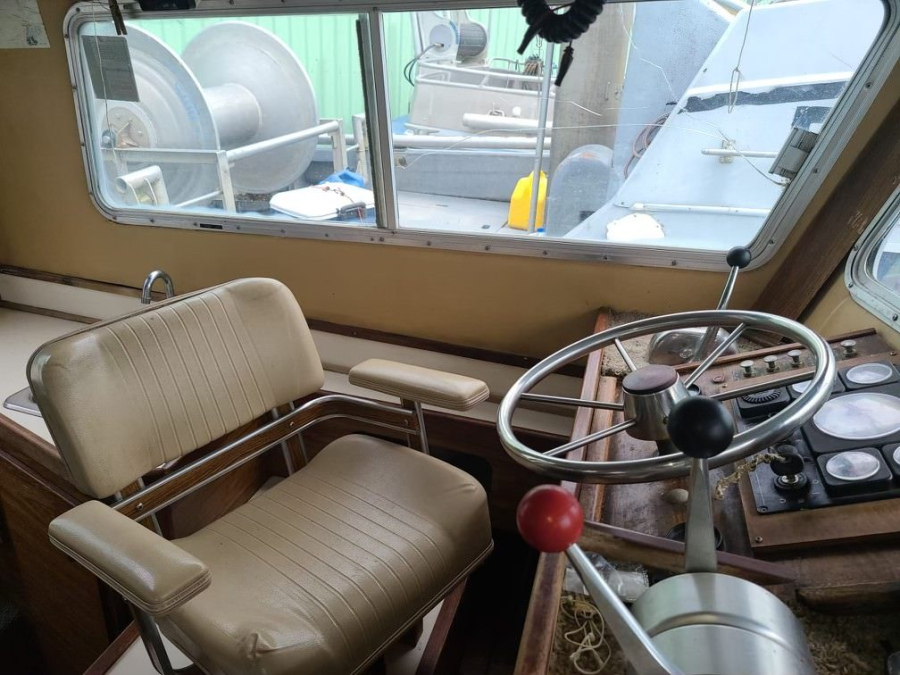

Captain Chair::       Fisherman Alum Frame Type / Swivel Type / Covered Cushions - Seat-Back-Arm Rests

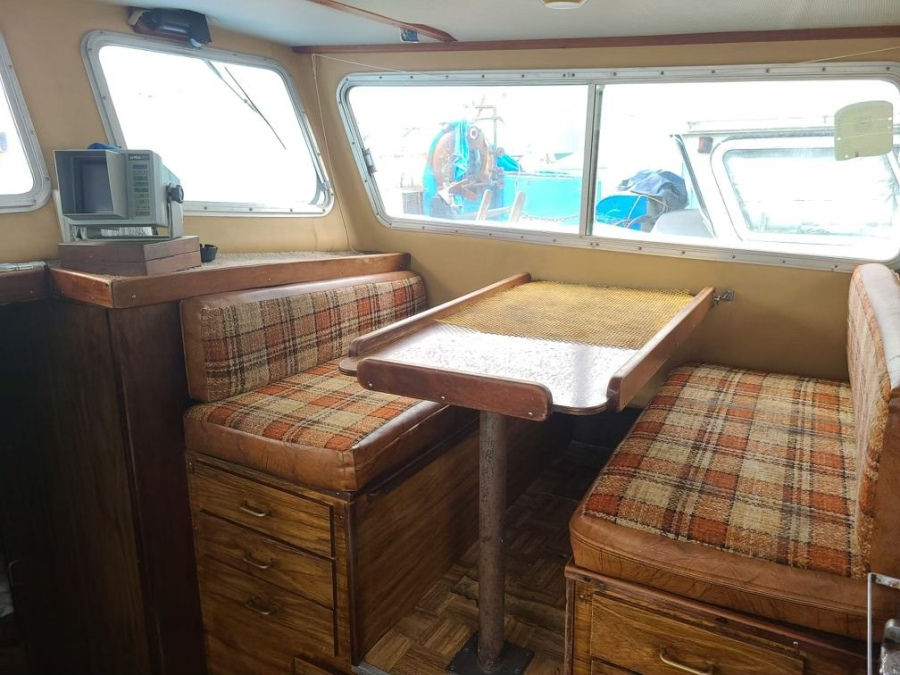

Dinette::         (4) Seat Table / Laminate Top / Covered Cushions / Seats-Backs
Galley::          Finished Cabinets & S/S Sink / Hot-Cold Pressurized Water
Heater::        NONE -Red Dot Type / 12VDC Fan/ Engine Heat Exchanger Type
Interior::        Finished/Painted Cabinets / Wall Covering / Headliner / Floor Covering and/or Carpet
Refrigerator::       Norcold Type / 12VDC-10VAC Power || Koolatron Chest Freezer / 12VDC

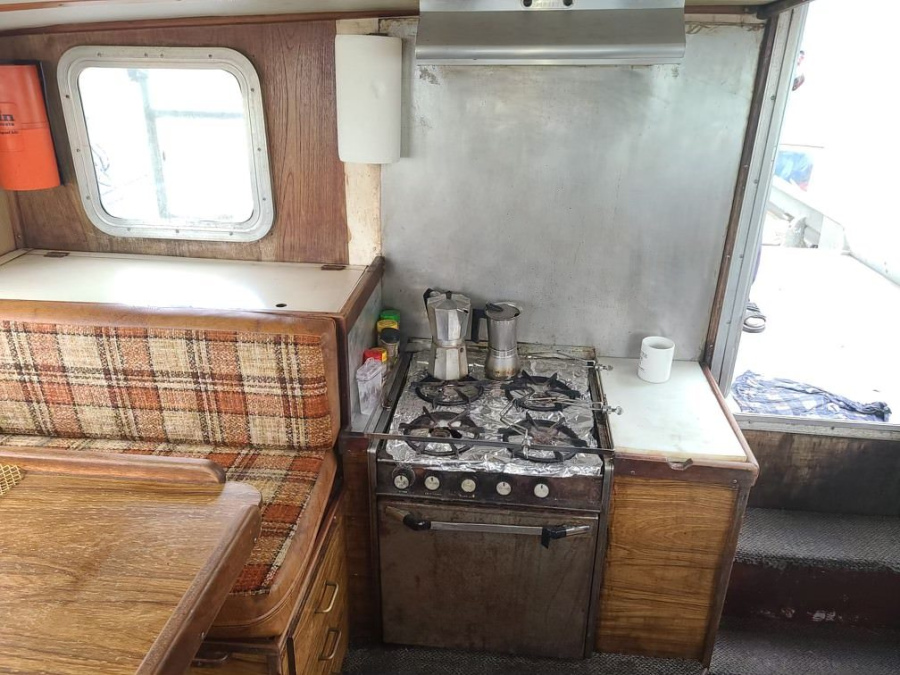

Stove::          Magic Chef / 4 Burner / Propane Type
Windows::          Forward Rake Fixed / Cabin Front || Sliders / Cabin Sides || Fixed / Cabin Door
            Fixed / Rear Cabin Bulkhead || Fixed/Open Type Port / Foscle Cabin

DECK GEAR & EQUIPMENT

Anchor::          30kg Claw / Approx 35ft 3/8-1/2in Chain & 90ft 5/8 Sampson B/B Type
Anchor Winch::      Maritime Fab / Manufactured Alum Const / Hydraulic Drive / Control Valve
            Custom Bow Roller Chock / Fab/Welded Alum Construction
Brailers::           (12) Nomar/Seattle Tarp Type / Vinyl Polyester Type / Custom Fit
Cleats::           Cast Aluminum Type / Thru-Bolted to Deck / Bow-Mid-Ship-Stern
Fenders::        (14) Polyform F-3/4 Series Type & Buoys / Heavy Duty Type
            (10) Misc Polyform Type Bouys
Hydraulics::        Industry Standard Motors-S/S Tubing-Hydraulic Hoses-Fittings -Control Valves

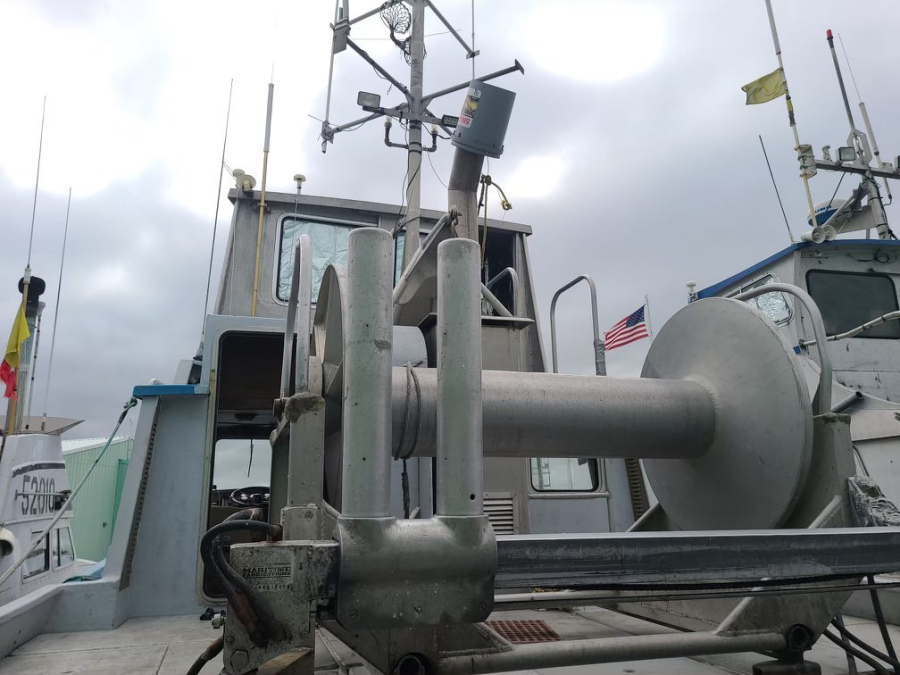

Reel::               Custom / Fab/Welded Alum Drum 58x38 & Frame / Tract Mounted
Kinematic Twister Hydraulic Drum Drive
Levelwind::        Kinematic Maritime Fab / Manufactured Alum  / Hydraulic Drive
Stern Roller::       Maritime Fab / Manufactured Alum / Hydraulic Drive

ELECTRICAL    Marine Grade Wiring / 12VDC System / Shore Power

Alternator::          Standard OEM Type / 12VDC System
Generator::        NONE -Honda 2000 / Portable Gasoline Diesel Auxiliary / 110/220VAC
Inverter::        Fusion 400W / 12VDC - 110VAC
Lights/Cabin::        Standard Type Main & Focsle Cabins / Engine Room
Lights/Deck::      (2) Hobbs Type / 55W Halogen Flood / Mast Yard Arms / 12VDC
    •    Foredeck/Anchor Flood Light / 12VDC
Lights/Drive::        (1) LED 18x Type / Foredeck Spot/Driving Type / 12VDC
Lights/Eng Rm::    Standard Type Main & Focsle Cabins / Engine Room
Lights/Navigate::     900-Red/Green Running / 3600-Wht/Red Anchor/Drift / 12VDC
Lights/Picking::          (2) Hobbs Type / 55Watt Halogen Flood / Stern Gunnels / 12VDC
Lights/Spot::        (1) Portable Handheld Type / 12VD
Panel::            Winterhalter / Circuit Breakers Distribution / Amp Meter/ 12VDC
            Misc Distribution Panel / 12VDC
Window Defrost::     (2) Hella/Guest Type Fan / Top House / 12VDC
Window Wipers::    (3) AFI Type / Heavy Duty Type / Fixed Front Cabin Windows / 12VDC

ELECTRONICS    Main Cabin & Fly Bridge/Top House Helm Station

AM/FM Radio::      Clarion AM/FM CD Player & Speakers System
Communication::    Standard Matrix AIS-GPS / VHF || ICOM IC M506 / VHF
ICOM IC 228H / 2Meter VHF
Depth Finder::        Sitex CVS 106 / Sounder || Morrow 60 Flasher
Navigation::          Garmin 547 / GPSMAP
(2) Aquameter & Dorigo Box Type / Magnetic Compass
Radar::           NONE -Furuno Garmin / -Mile Type / Open Array Dome Antennae Type

F/B - TOP HOUSE     Standard Fly Bridge with Custom Enclosed Aluminum Top House Addition

Chair::          Fisherman Style Poly Type / Swivel & Arm Rests / Padded Seat-Back
Ladder::                Fab/Welded Alum Pipe Construction / Hand Rails
Spray Shield::        N/A -Clear Acrylic Type / Fabricated Alum Supports
Storage Locker::        FRP & Plywood Construction
Windows::          Forward Rake Front Fixed (1-Vertical Slider Type) / Top House Front
Sliders / Top House Sides || Fixed / Rear Bulkhead

HATCHES

Engine Room::    Custom Fabricated Deck Boards / Main Cabin Floor
            FRP Hatch 24x24 / Fish Hold Bulkhead
Door/Cabin::        Sea Glaze Alum Sea Door w/ Dog Latches / Fixed Window / Dog House Type
Door/Top House::    Custom Slider / Fabricated Wood & Alum Frame / Fixed Window
Fish Holds::           (6) Fabricated Construction / FRP Single Wall / Non Skid Surface
            Fab/Welded Alum Construction / Non Skid Surface
Focsle::        NONE    -Ocean Hatch Type / Tinted Acrylic Type / Alum Frame / Water Tight
Lazarette::           Freeman 24x15 Type Alum / Water Tight

HULL            Fabricated/Molded FRP Construction || UMHW Rub Rail
            Toe Rail Along Gunwales Bow to Midship
Anchor Guard::    Custom Fabricated Alum Plate Const
Bow Stem Guard::    Fabricated Alum Const / Bow to Shoe
Drop-Out Box::        NONE -Fab/Welded Alum Const / Attached to Transom
Fish Hold::         (6) Insulated / 12,000# Capacity / Fab/Molded Single Wall Construction
Keel::             Fab/Molded FRP Construction / Integral with Hull
Mast::            Custom Fab/Welded Alum Construction / Mast-Yard Arms-Stays
Picking Bar::        NONE -Fab Alum PVC Pipe / Alum Brackets / Main Deck Bulwarks
Prop Inspection::    NONE -Lazarette / Custom Fab/Welded S/S Port / Water Tight
Rudder::              Fab/Welded Steel Plate Construction / S/S Shaft / Removable Type
            Bronze Alloy Rudder Shaft Housing & Compression Shaft Seal
Scupper Drains::          Multiple / Self Bailing / Cockpit Lazarette Deck
Skid Plate::        NONE -Fab Alum Construction / Attached to Keel
Shaft Seal::           Unknown -PSS Type / Drip-Less Type / Stationary Carbon Flange / S/S Rotor
            Unknown -Marine Drip Type Shaft Seal / Manufactured Bronze Alloy Construction
Shoe::           Fab/Welded Steel Flat Bar Construction
Strut::             Fab/Welded Steel Flat Bar Construction / V-Type
Transom Ladder::    NONE –Baywood Type / Cast Alum Hand Holds / Recessed & Attached to Transom
NONE –Hand Rails / Fab/Welded Alum / Welded to Transom
Zincs::                As Needed -Round/Teardrop/Bar Type Anodes / Electrolysis Corrosion Control
As Needed -Walters Cooler Type / OEM Type Anodes / Electrolysis Corrosion Control


PUMPS    See Safety & Emergency Section / Pumps :: Eng Rm-Fish Hold-Laz-Wash Down

Fresh Water::        Par Diaphragm Type / Pressure On Demand / 12VDC
Hydraulic::         (2) Eaton Type 6.33 /4.83 / (Unverified See Picture)
Pressure Compensating / Reduction Gear PTO Drive
Power Steering::    NONE -Vickers VTM Vane Type


RSW            2015 Pac West 7.5T / Fish Hold Pumbing System
Hydraulic Powered Compressor & Pumps
            Flomax 2.00in Type Circulation Pump & Jabsco 1.25in Type Condenser Pump
            Located in Engine Room / Control Panel in Top House
            Dedicated Keel Cooler

STEERING

Auto Pilot::        NONE -ComNav 1001 / Control Unit- Compass / 12/24VDC
            N/A -(2) Multiple Single Station / Jog Lever Remote Control / Cabin-F/B Helm Stations
Bow Thruster::    2016 Niaid 8in Type / Hydraulic Drive / Fab/Molded FRP Tunnel
(3) Multiple Single Station / Toggle Switch/Jog Lever Control / Helm Stations
Controls::         (3) Station Hynautic / Pressurized Manuel Hydraulic / Single Function Single Lever
Helm Pumps::     (3) Station Wagner Type / Manuel Hydraulic System
Tiller Ram::          Capilano / Hydraulic Piston || Baywood Bronze Alloy Rudder Arm Type
Wheels::               Destroyer Type / 6 Spoke S/S / Cabin Helm Station
            Destroyer Type / 6 Spoke S/S / F/B Helm Station
            Cast Aluminum Type / 3 Spoke / Stern Helm Station


TANKS

Day Tank::                   N/A -gal Diesel Oil / Fab/Welded Alum Construction / Shut-Off Valves
            N/A -Diesel Transfer/Impulse Fuel Pump / 12VDC
Fresh Water::              (1) 75gal Fab/Welded Alum Construction / Shut-Off Valves
Fuel::                    (2) 350gal Diesel / Fab/Welded Alum Const / Shut-Off Valves
Hot Water::        (1) 6gal Torrid Type / Manufactured S/S Const / 110VAC & Heat Exchanger
Hydraulic Fluid::       (1) 25gal Fab/Welded Alum Construction / Filter / Shut-Off Valves / Sight Gauge
Propane::        (1) 5gal RV Type / Standard Steel Cylinder

ALARMS    No -Engine / Low Coolant*          Yes-Engine / Low Oil         No -Engine / Hi-Temp
        No -High Water / Eng Room         No -High Water / Laz        No -Heat Sensor / Cabin
        No -Heat Sensor / Eng Room        Yes-Carbon Monoxide         No -Smoke Detector
        No -Water in Fuel            No -Hydraulic Fluid        *Murphy Switch

SAFETY & EMERGENCY EQUIPMENT

Day Shape:        YES -Custom Fabricated / Secured to Mast Yard Arms
EPIRB ::           NONE –ACR 406MHz / Class II / COPAS-SARSAT Type/ Expires
Fire Extinguishers::     (2) ABC/BC Standard Handheld Type / Main & Focsle Cabins
First Aid :           YES -Basic Needed Products for Minor Emergencies / Main Cabin
Flares::           YES -Small Handheld / Alert & Located / USCG Approved Type
Hand Rails::           Main Cabin Sides & Front / Fab/Welded Alum Pipe / Single Rail Wrap Around
            Top House Enclosed w/ Ladder Hand Rails
            Cockpit Deck Sides & Stern Bulwarks
Life Ring::         YES -24in Closed Cell Rigid Urethane Foam Type / 60ft Attached Line / USCG Type
Placards::                YES -Crew Injury / MARPOL / Oil Discharge / Zero Tolerance
Pumps::
    Engine Rm::    (3) Rule 2000 & 1500 Type / Auto Float Switch / 12VDC
Fish Hold::     Wash Down Pump and/or RSW Circulation Pump / Manuel Control
    •    Rule 2000 Type / Auto Float Switch / 12VDC
    Lazarette::    (2) Rule 1500 Type / Auto Float Switch / 12VDC
    Wash Down::    Jabsco 1.25in Type / Bronze / Flexible Impeller / Engine Belt Drive
Survival Suit ::      (4) Mixed Adult Universal Sizes (Imperial-Mustang-Stearns-Bailey-Harvey Type)
USCG Inspection::      YES -Commercial Fishing Vessel Safety Exam Sticker / #161183  / Expires
    Cold Water / Inside Boundary Line / < 3NM / Vessel Meets All USCG Commercial Fishing Industry Regulations for Operating Areas as Marked



$240K boat

$440k Boat & Bristol Bay Permit
