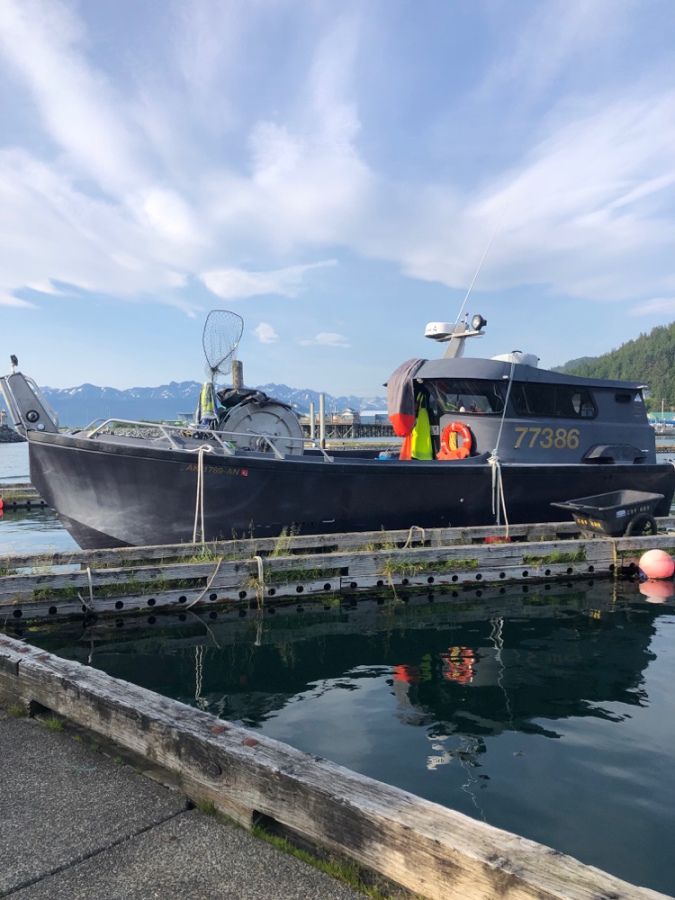

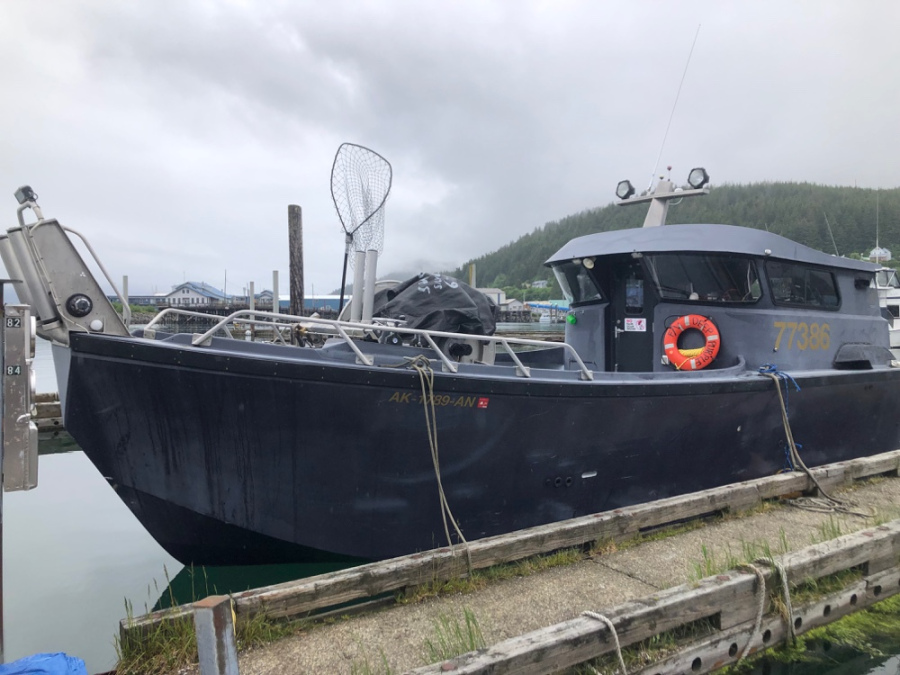

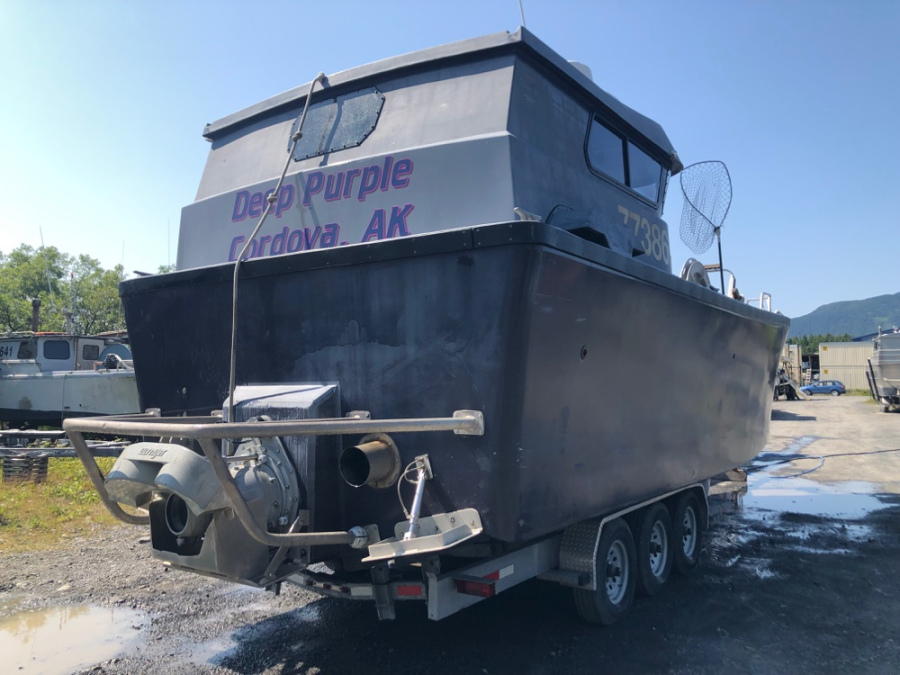

32' Gillnet Bow Picker package deal with Prince William Sound Drift Permit



- Builder: Freddy’s Marine/Freestyle Marine/Foma Reutov

- Dimensions: LOA: 32’ Beam: 11’9” Draft: 20”

- Net tons: 6 Gross tons: 10

- Hull Construction: Hand laid, molded fiberglass

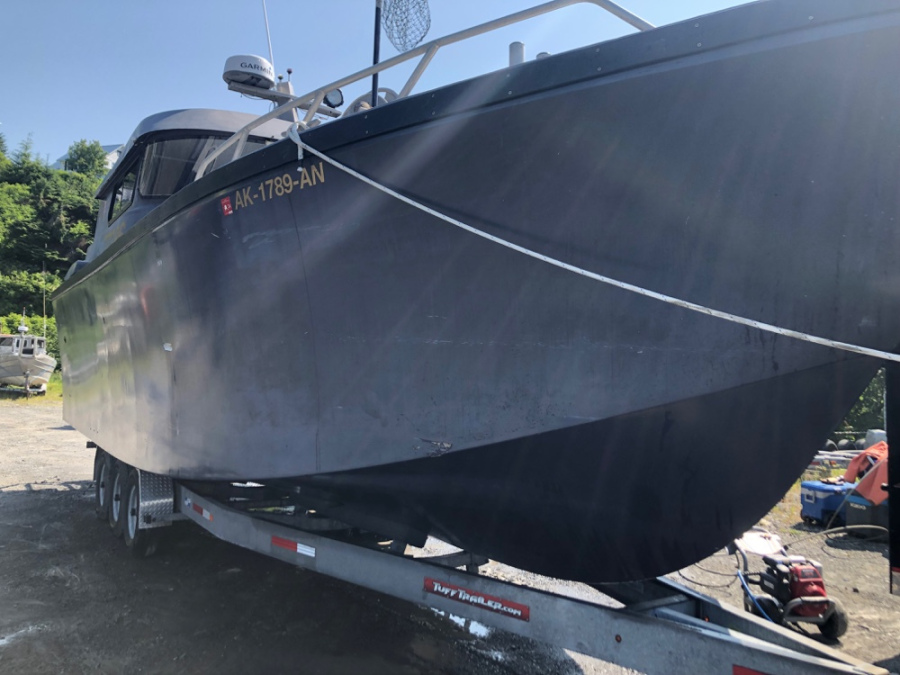

- Hull Description: Racked bow, semi-vee planning bottom, 6” reverse chine & square stern



Propulsion
- Engine: Cummins/Recon QSM,11-715 HO Horsepower: 705 Type: In-line, 6-cylinder, 4-stroke, diesel, turbocharged/aftercooled, 10.8 liter
- Fuel System: “Celect” electronically controlled unit injection system
- Tach. Gauge Hours: 1,493.4 Year: 2013

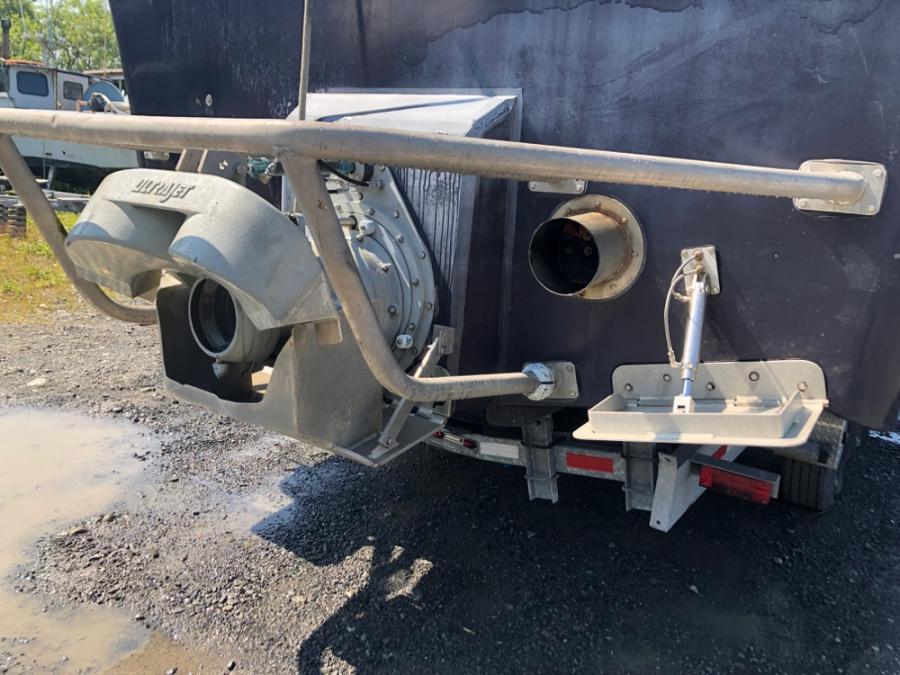

- Exhaust: Wet through transom w/external 8” stainless steel pipe and high temperature rubber hose and rubber flapper
- Cooling: Raw water off engine-driven rubber impeller pump 2” bronze sea strainer through heat exchanger Ventilation: Engine is natural air ventilated to outside

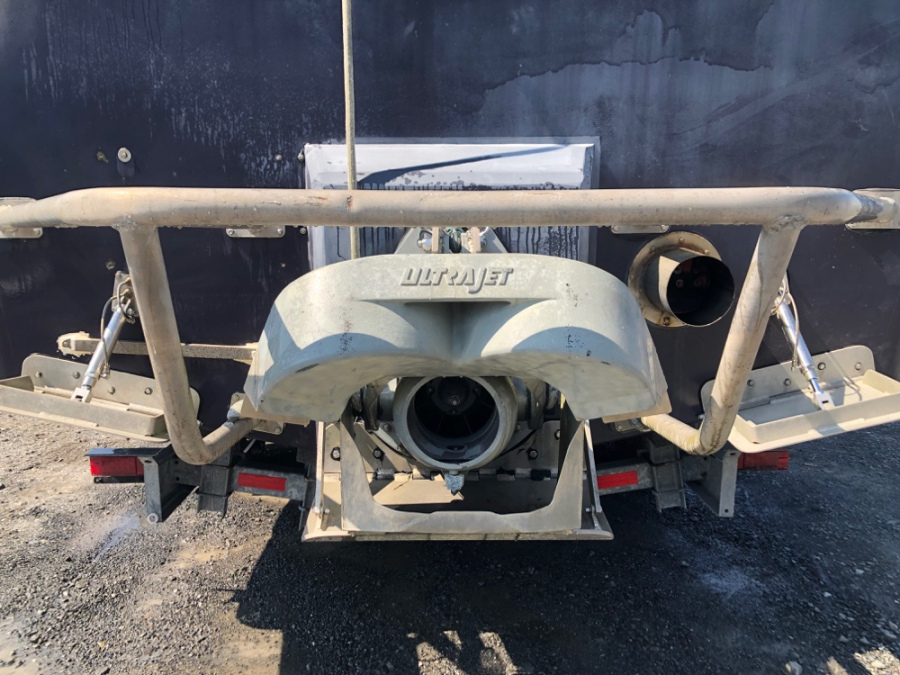

- Remarks: Engine is in like-new condition Transmission: Twin Disc MG-5114-- - SC Ratio: 1.02:1 Unit: Ultra Jet 376H-DAC1D5FLZ (14.8”)
- Serial NO: 4576 Unit NO: 8976-000-OHS Propellers/Impellers: 8936-016-00X stainless steel



Hydraulics:

- Eaton 4.8 cube load sensing, piston hydraulic pump, with piggy back port, located on B port of transmission Cooling for hydraulics is welded 1” stainless steel tube externally mounted on aft port bottom of hull

Trim Tabs: Welded aluminum cavitation plates w/stainless steel rams run off dual Concentric 12V DC motor/pump auxiliary units



Batteries:

- (2) 8-D 12-volt DC marine batteries (starting), secured in aluminum tray forward in engine room (2) 8-D 12-volt DC (house/inverter) secured in aluminum tray starboard forward in engine room

Sea Cocks: (2) 2” & (1) 1 1⁄2” (1) 3⁄4” stainless steel; (1) 2” Mylar Type: Ball Remarks: In working order

Steering: (2) station Seastar hydraulic with tiller ram,

Engine Controls: (2) station ZF 12-volt electric controls, throttle and transmission; (2) station Kobelt 12-volt electric/hydraulic bucket control

Tanking System
Fuel Tank: est. 350-gal., fiberglass, located aft of fish hold
Fuel Filters: Racor S3232 UL spin-on and spin-on secondary filters at the engine
Fuel Lines: USCG type A-1 neoprene hose
Water Tank: 30 gal. plastic
Hydraulic Tank: 20-gal., aluminum, mounted inside on cabin aft bulkhead
Holding Tank: 6 gal. plastic w/Y valve
Stove oil Tank: 15 gal. aluminum



Bilge Pumps:

(1) Rule 12-volt 3700 with internal float, in forward engine compartment

(1) Rule 12-volt 1500 with float, in aft engine compartment

(2) Rule 12-volt Rule 2000 manual in covered sumps, fisholds

(1) Rulemate 12-volt 500, with internal float in bow compartment

Other Pumps:

Pacer hydraulic driven 2” net wash/seawater wash-down pump

Par/Max 12v fresh water w/filter



Stoves & Heaters:

Planar 44D-12 forced air cabin heater, diesel, with 3” ducting mounted starboard aft engine compartment; fuel from main tank with 12-volt pulse pump Camp Chef two-burner propane stove w/oven

Head: Enclosed head Par marine manual marine toilet; sink with faucet in cabinet & 12-volt LED interior lighting

Anchor Gear: 15 kg Bruce type with 3/8” chain x 35’ & 100’ of 3⁄4" Samson anchor line

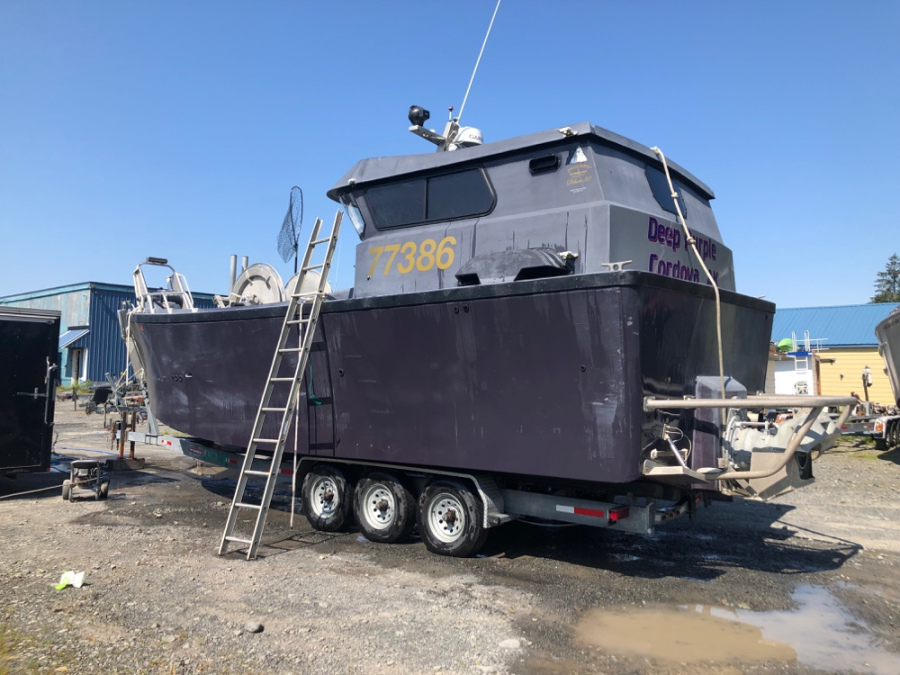

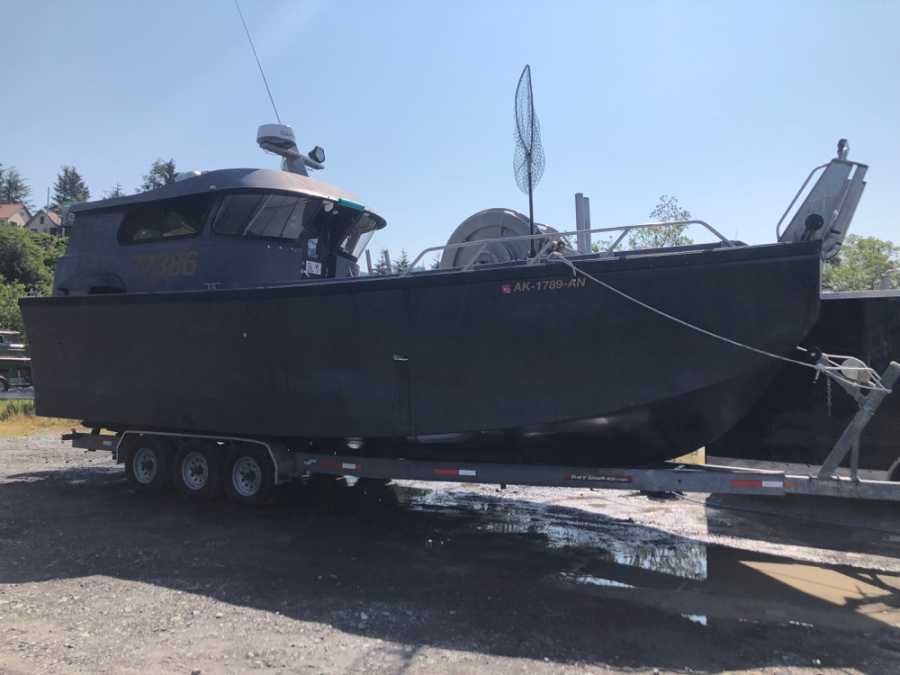

Trailer: Tuff Trailer, three-axle, galvanized steel (2015) VIN: 1T9BB8C88FL952054 (in excellent condition)

Deck Machinery & Equipment:

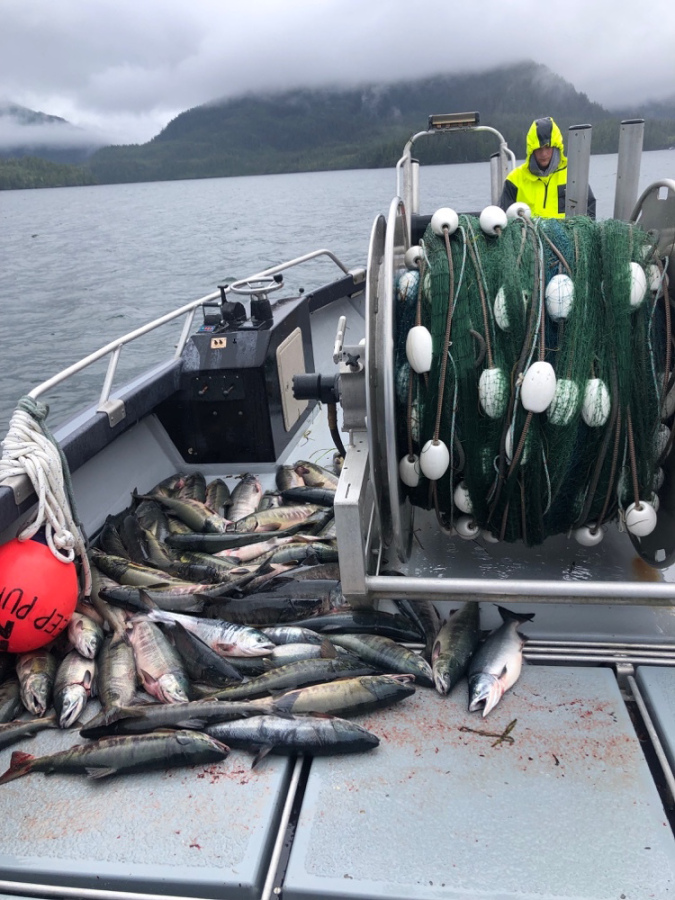

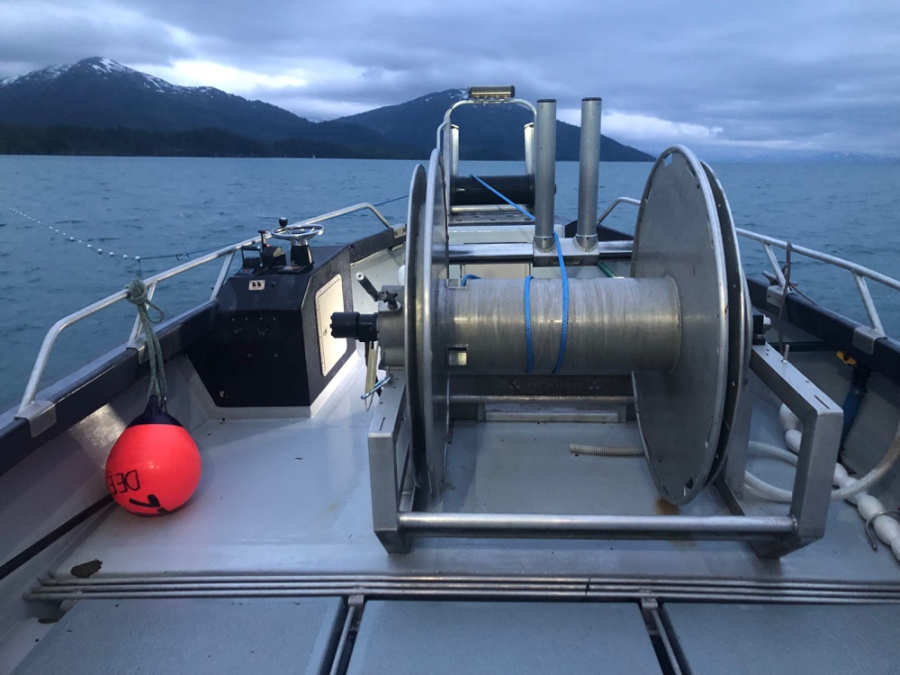

Net reel: Webber Marine 48” x 48” aluminum reel w/anchor reel & line spool, Twister hydraulic
drive & bleed tank
Levelwind: Webber Marine w/automatic hydraulic valving Bow roller: Webber Marine, hydraulic
Mooring cleats: (6) 10” aluminum
Watertight hatch: (1) Freeman, on foredeck
Handrails: 1” aluminum pipe handrail around forward work deck

Electronics:
VHF radio: Cobra MFR-R80 VHF
Marine Instrument Display: Garmin GNX 21 located on forward helm station
Map Plotter: Garmin 1040XS GPS chart plotter/depth sounder with repeater at forward helm station Stereo: Pioneer DEH 3300 UB CD/AM/FM/Stereo player with speakers in cabin

Navigation Equipment:
Running & anchor lights for class: LED 12-volt Compass: 2 1/2” Richie, magnetic
Horn: Manual air
Deck Lights: (4) LED 12-volt deck lights recessed under bow bulwarks & cabin entry door
Search Lights: (2) 9” 12-volt HID spotlights mounted to navigation mast
(1) LED 12-volt 11” x 4” spotlight, mounted to power roller fairleads



Electrical:



Insulated stranded marine copper wire, secured w/tie backs 12v & 110v panel with breakers & fuses (2) marine alternators, 55 amp. each, mounted on each engine

Inverter: Magnum Energy inverter/AC, 120-volt, 30-amp step charger with Blue Seas SI-ACR automatic charging relay

Refrigerator: Kenmore 3.1 cu.ft. 120-volt refrigerator/freezer

Lifesaving Equipment:

Heat/smoke/vapor detectors: 9-volt smoke and carbon monoxide alarm in main cabine Oil pressure & water temperature alarm Life ring with 60’ throw line

Orion day/night signal flares EPIRB: ACR 406 MHZ

Portable Fire Extinguishers:
(2) 2.5 lb. dry chemical (A,B,C) at helm station; in the green

Fish Hold:

Hold capacity: 8,000 lbs. insulated with foam and rigged for brailer bags (6) fiberglass watertight & insulated hatch covers Fish hold is insulated



- boat/trailer

- PWS drift permit



Package Deal

$285k
